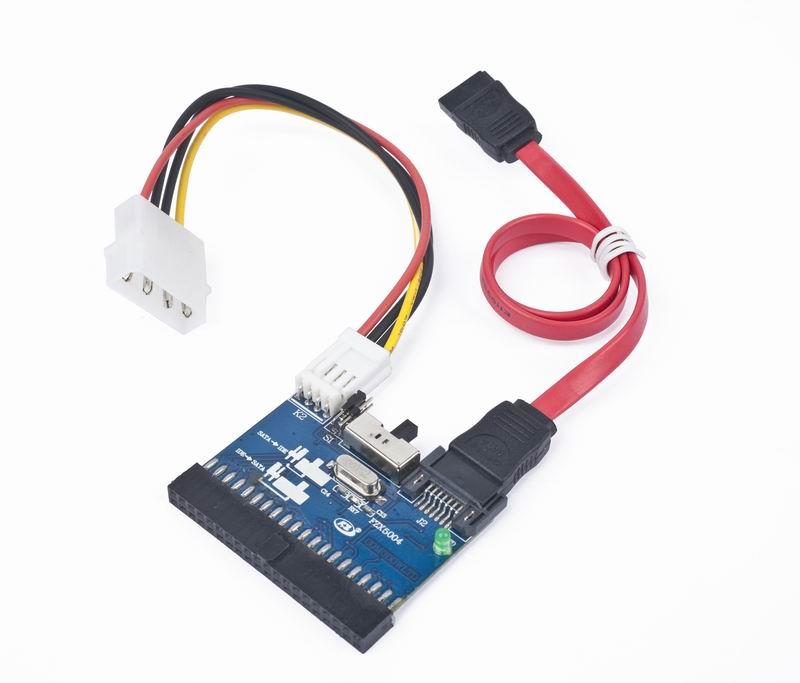

SATA-IDE-2

Bi-directional SATA/IDE converter

  • GET MORE OUT OF YOUR PC
  • Converts SATA to IDE and IDE to SATA
  • Extend the life of your IDE devices


  • Turns ‘older’ IDE devices into SATA devices
  • Allows recent SATA devices to be connected to ‘older’ IDE host controllers
  • Supports Serial ATA 1.0 interface with data transfer rates up to 150 MBytes/sec
  • Supports all UDMA-33/66/100/133/150 IDE hard drives and most ATAPI devices
  • Easy installation, no drivers required
Specifications
Native Hot-Swap and Plug & Play capability (non-boot device)
Standard female IDE 40-pin connector
Standard 7-pin Serial ATA connector
Chipset: JM20330
Dimensions: 52 x 48 mm
Net weight: 12 g

System requirements
No drivers required under Windows 8/7/Vista/XP/2000/Me/NT/98SE/95/3.1 and DOS 5.0
Package contents
Bi-directional SATA-IDE converter card
SATA cable, 0.3 m
Power cable, 0.18 m
Packing details
Q'ty in crtn, pcs40
Crtn volume, CUM0.033728
Crtn weight, kgs4.96
Individual package size LxWxH:160x30x145 mm
Carton size LxWxH:340x320x310 mm
Country of originCN
Barcode8716309067805
Customs code8473308000
Packagingwhite box + color sleeve
